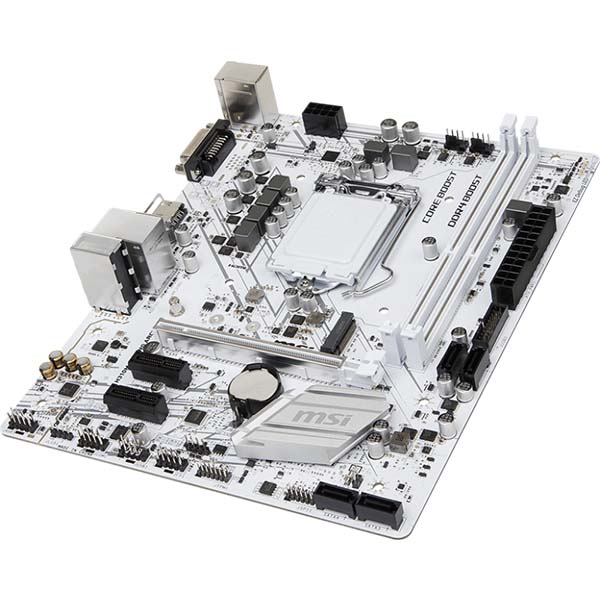

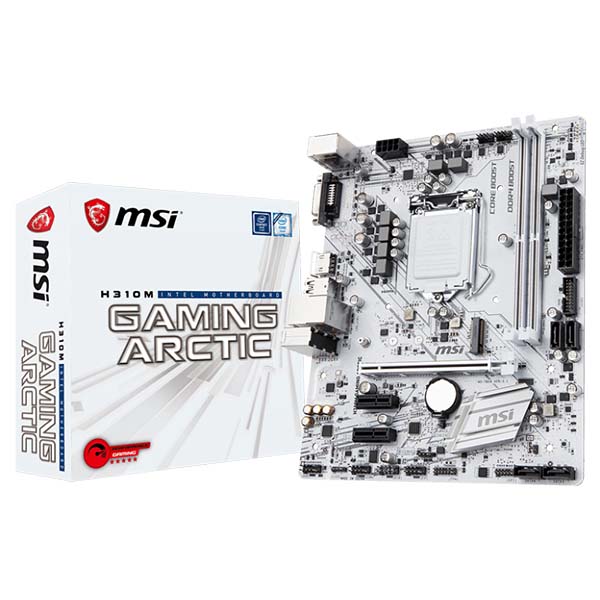

Mainboard MSI H310M GAMING ARCTIC
https://hakivn.com/wp-content/uploads/2018/08/MSI-H310M-GAMING-ARCTIC-2.jpg
https://hakivn.com/wp-content/uploads/2018/08/MSI-H310M-GAMING-ARCTIC-3.jpg

Mainboard MSI H310M GAMING ARCTIC

  • Chipset: Intel® H310
  • Socket LGA1151 v2
  • Bộ nhớ: Tối đa 32GB
  • Lưu trữ: M.2 x1, SATA3 x4
  • Cổng USB: Tối đa 4 USB 3.1, 6 USB 2.0
  • Âm thanh: 7.1
  • Kích thước: Micro-ATX

Liên hệ


Giá trên có thể tăng hoặc giảm, vui lòng liên hệ hotline để biết thông tin chính xác
  • Thông số kỹ thuật
  • Mô tả tính năng
  • Bình luận

Mã hàng: MAMH340
Bảo hành: 36 Tháng
Hãng sản xuất: MSI

PROCESSOR

Supports 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors for Socket LGA1151

CHIPSET

Intel® H310 Chipset

MEMORY

2 x DDR4 memory slots, support up to 32GB

Supports DDR4 2666/ 2400/ 2133 MHz Memory

Dual channel memory architecture

Supports non-ECC, un-buffered memory

Supports Intel® Extreme Memory Profile (XMP)

SLOTS

1 x PCIe 3.0 x16 slots

2 x PCIe 3.0 x1 slots

ONBOARD GRAPHICS

1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz

1 x HDMI™ port 1.4, supports a maximum resolution of 4096×2160@30Hz

STORAGE

Intel® H310 Chipset

4 x SATA 6Gb/s ports

1 x M.2 slots (Key M)

  • Support up to PCIe 2.0 x4 and SATA 6Gb/s
  • Supports 2242/ 2260 /2280 storage devices

USB

Intel® H310 Chipset

4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors)

6 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connectors)

AUDIO

Dual Realtek® ALC887 Codec

7.1-Channel High Definition Audio

LAN

1 x Intel I219-V Gigabit LAN controller

INTERNAL CONNECTORS

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

4 x SATA 6Gb/s connectors

1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)

1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)

1 x 4-pin CPU fan connector

1 x 4-pin system fan connector

1 x Front panel audio connector

1 x Serial port connector

2 x Front panel connectors

1 x TPM module connector

1 x Chassis Intrusion connector

1 x LED connector

1 x Clear CMOS jumper

BACK PANEL PORTS

  1. PS/2 Combo Port
  2. LAN Port
  3. HD Audio Connectors
  4. USB 2.0 Port
  5. DVI-D Port
  6. HDMI
  7. USB 3.1 Gen1 Port
  8. USB 2.0 Port

MSI H310M GAMING ARCTIC back panel ports

DIMENSIONS

9.1 in. x 7.3 in. (23.0 cm x 18.5 cm)

m-ATX Form Factor

MOUNTING

6 mounting holes
