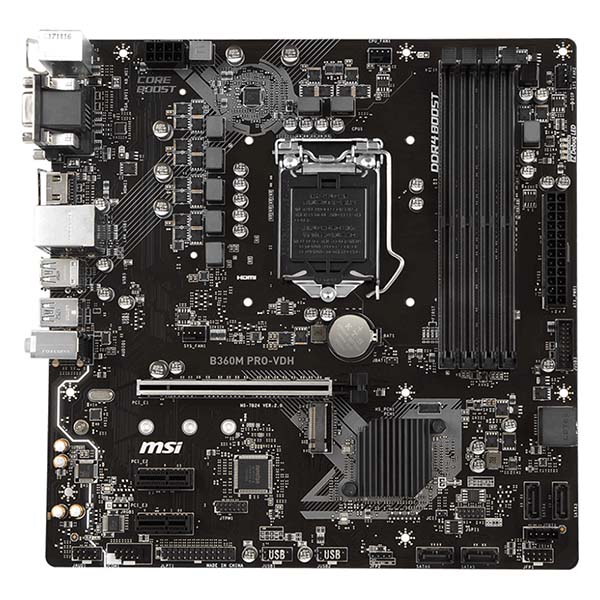

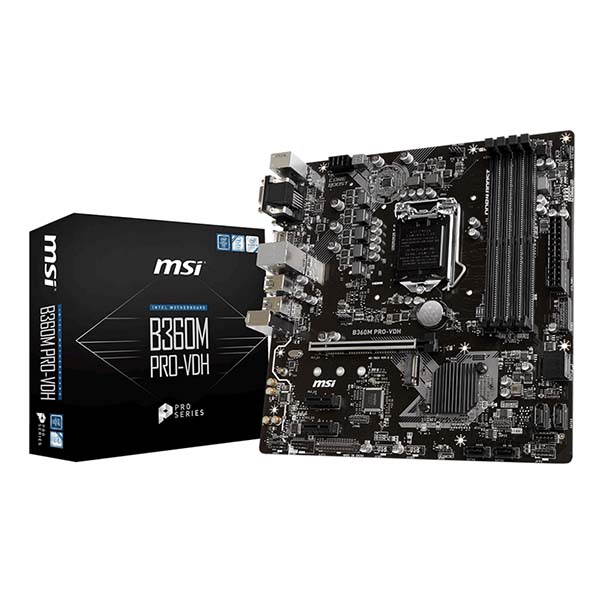

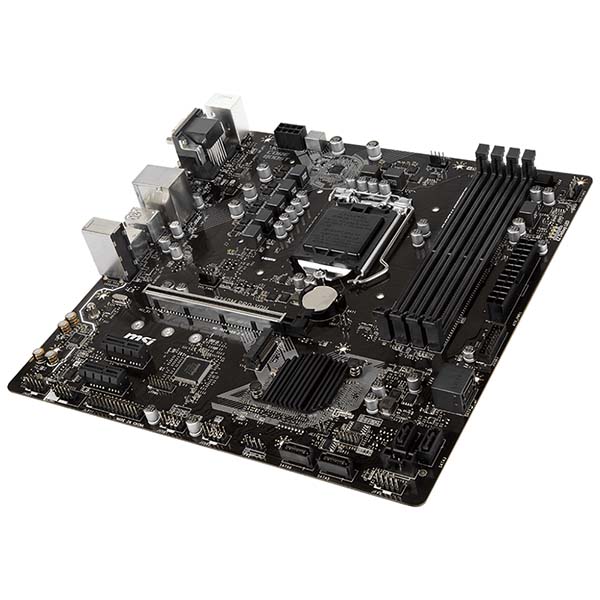

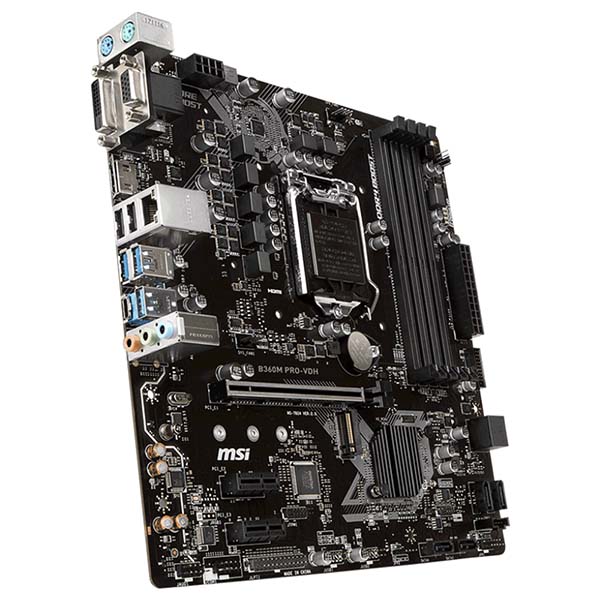

MSI B360M PRO-VDH
- Chipset: Intel® B360
- Socket LGA1151 v2
- Bộ nhớ: Tối đa 64GB
- Lưu trữ: M.2 x1, SATA3 x6
- Cổng USB: Tối đa 1 USB Type-C, 5 USB 3.1, 6 USB 2.0
- Âm thanh: 7.1
- Kích thước: M-ATX
Supports 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors for Socket LGA1151
Intel® B360 Chipset
4 x DDR4 memory slots, support up to 64GB
Supports DDR4 2666/ 2400/ 2133 MHz Memory
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
1x PCIe 3.0 x16 slot
2x PCIe 3.0 x1 slots
1 x VGA port, supports a maximum resolution of 2048×1536@50Hz, 2048×1280@60Hz, 1920×1200@60Hz
1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz
1 x HDMI™ port 1.4, supports a maximum resolution of 4096×2160@30Hz
6 x SATA 6Gb/s ports1
1 x M.2 slot (Key M)
Support up to PCIe 3.0 x4 and SATA 6Gb/s
Supports 2242/ 2260 /2280/ 22110 storage devices
M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices
Intel® Optane™ Memory Ready2
Supports Intel® Smart Response Technology for Intel Core™ processors
The SATA1 connector will be unavailable when an M.2 SATA SSD module has been installed in the M.2_1 slot.
Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
6x USB 3.1 Gen1 (SuperSpeed USB) ports (3 Type-A & 1 Type-C ports on the back panel, 2 ports available through the internal USB connector)
6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
7.1-Channel High Definition Audio
1 x RTL8111H Gigabit LAN controller
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
6x SATA 6Gb/s connectors
1x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
2x 4-pin system fan connectors
1x Front panel audio connector
1x Parallel port connector
1x Serial port connector
2x Front panel connectors
1x TPM module connector
1x Chassis Intrusion connector
1x Thunderbolt add-on card connector
1x Clear CMOS jumper

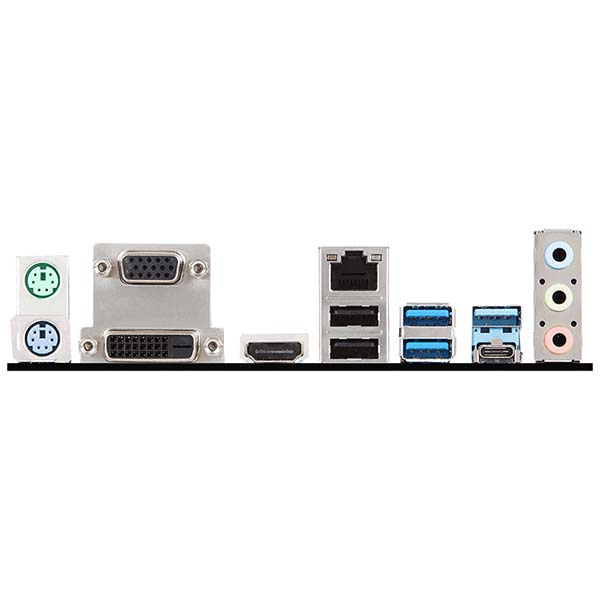

1x PS/2 keyboard port
1x PS/2 mouse port
1x VGA port
1x DVI-D port
1x HDMI™ port
1x LAN (RJ45) port
2x USB 2.0 Type-A ports
3x USB 3.1 Gen1 Type-A ports
1x USB 3.1 Gen1 Type-C port
3x Audio jacks
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
m-ATX Form Factor
8 mounting holes
