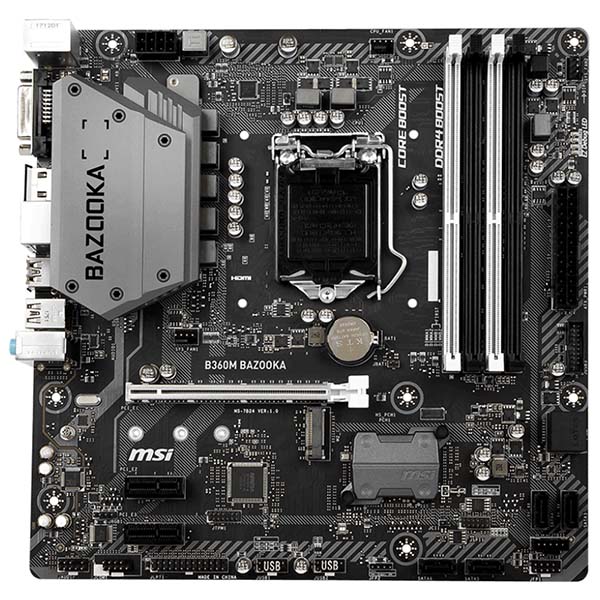

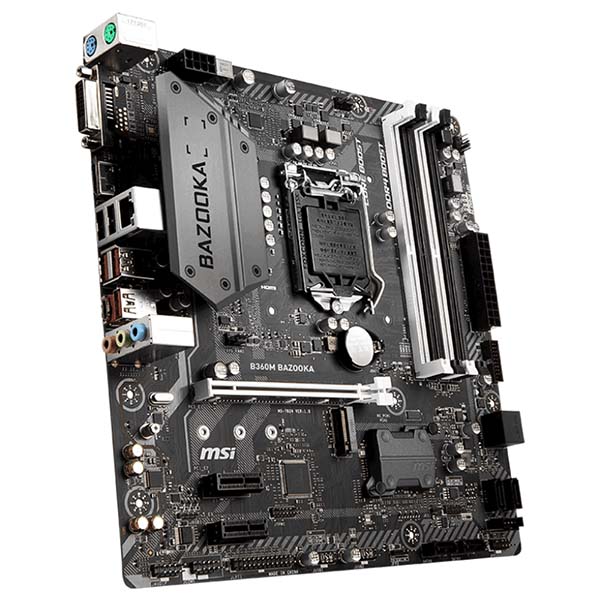

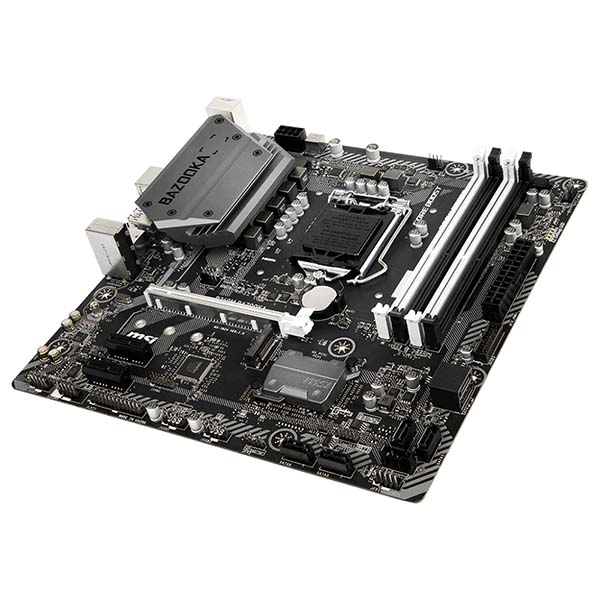

MSI B360M BAZOOKA

PROCESSOR

Supports 8th Generation Intel® Core™ Processors, and Intel® Pentium® Gold and Celeron® Processors for Socket LGA1151

CHIPSET

Intel® B360 Chipset

MEMORY

4 x DDR4 memory slots, support up to 64GB

• Supports DDR4 2666/ 2400/ 2133 MHz1

Dual channel memory architecture

Supports non-ECC UDIMM memorye

Supports Intel® Extreme Memory Profile (XMP)

Please refer to www.msi.com for more information on compatible memory

SLOTS

1 x PCIe 3.0 x16 slot

2 x PCIe 3.0 x1 slots

ONBOARD GRAPHICS

1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz

1 x HDMI™ port 1.4, supports a maximum resolution of 4096×2160@30Hz

STORAGE

Intel® B360 Chipset

6 x SATA 6Gb/s ports1

1 x M.2 slots (Key M)

• Support up to PCIe 3.0 x4 and SATA 6Gb/s
• Supports 2242/ 2260 /2280/ 22110 storage devices
• Intel® Optane™ Memory Ready2

The SATA1 connector will be unavailable when a SATA M.2 SSD has been installed in the M.2_1 slot.

Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

USB

Intel® B360 Chipset

6 x USB 3.1 Gen1 (SuperSpeed USB) ports (3 Type-A & 1 Type-C ports on the back panel, 2 ports available through the internal USB connector)

6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

AUDIO

Dual Realtek® ALC887 Codec

7.1-Channel High Definition Audio

Supports S/PDIF output

LAN

1 x Realtek 8111H Gigabit LAN controller

INTERNAL CONNECTORS

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

6 x SATA 6Gb/s connectors

1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)

2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1 x 4-pin CPU fan connector

2 x 4-pin system fan connectors

1 x Front panel audio connector

1 x Parallel port connector

1 x Serial port connector

2 x Front panel connectors

1 x TPM module connector

1 x Chassis Intrusion connector

1 x Thunderbolt add-on card connector

1 x RGB LED connector

1 x Clear CMOS jumper

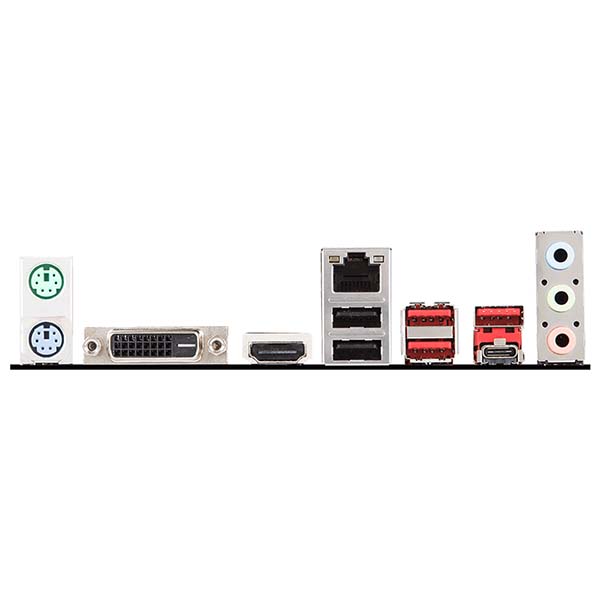

BACK PANEL PORTS

Mouse and Keyboard Port

LAN Port

USB 3.1 Gen1 Type A

HD Audio Connectors

DVI-D Port

HDMI Port

USB 2.0 Port

USB 3.1 Gen1 Type C

DIMENSIONS

9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

m-ATX Form Factor

MOUNTING

8 mounting holes
