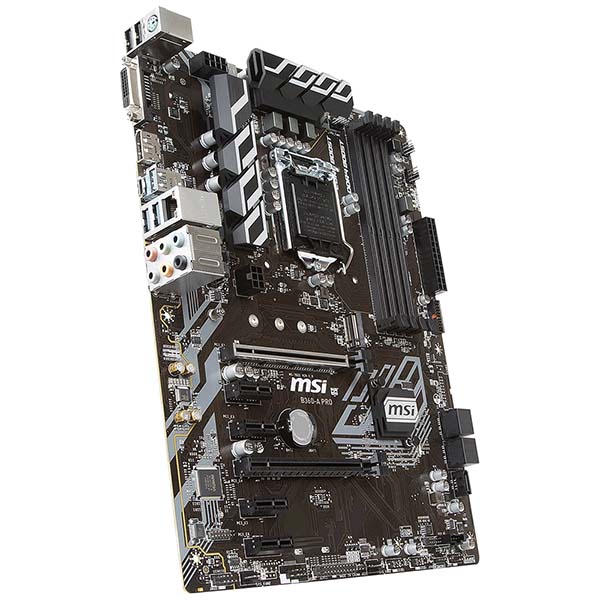

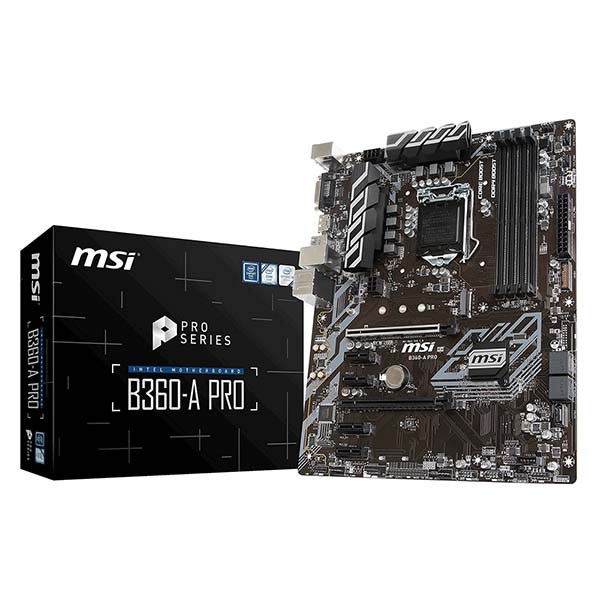

Mainboard MSI B360-A PRO
https://hakivn.com/wp-content/uploads/2018/08/msi-b360-a-pro-3.jpg
https://hakivn.com/wp-content/uploads/2018/08/msi-b360-a-pro-2.jpg
https://hakivn.com/wp-content/uploads/2018/08/msi-b360-a-pro-4.jpg
https://hakivn.com/wp-content/uploads/2018/08/msi-b360-a-pro-5.jpg

Mainboard MSI B360-A PRO

  • Chipset: Intel® B360
  • Socket LGA1151 v2
  • Bộ nhớ: Tối đa 64GB
  • Lưu trữ: M.2 x1, SATA3 x5
  • Cổng USB: Tối đa 1 USB Type-C, 5 USB 3.1, 6 USB 2.0
  • Âm thanh: 7.1
  • Kích thước: ATX

Liên hệ


Giá trên có thể tăng hoặc giảm, vui lòng liên hệ hotline để biết thông tin chính xác
  • Thông số kỹ thuật
  • Mô tả tính năng
  • Bình luận

PROCESSOR

Supports 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors for Socket LGA1151

CHIPSET

Intel® B360 Chipset

MEMORY

4 x DDR4 memory slots, support up to 64GB

  • Supports DDR4 2666/ 2400/ 2133 MHz

Dual channel memory architecture

Supports non-ECC, un-buffered memory

Supports Intel® Extreme Memory Profile (XMP)

Please refer to Compatibility for more information on compatible memory

SLOTS

2 x PCIe 3.0 x16 slots (supports x16/ x4 mode)

4 x PCIe 3.0 x1 slots

ONBOARD GRAPHICS

1 x DisplayPort 1.2, supports a maximum resolution of 4096×2304 @ 60Hz

1 x DVI-D port, supports a maximum resolution of 1920×1200 @ 60Hz

MULTI-GPU

Supports 2-Way AMD® CrossFire™ Technology

STORAGE

Intel® B360 Chipset

5 x SATA 6Gb/s ports1

1 x M.2 slot (Key M)

  • Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices2
  • Intel® Optane™ Memory Ready

SATA1 port will be unavailable when an M.2 SATA SSD module has been installed in the M.2 slot.

Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

USB

Intel® B360 Chipset

2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port and 1 Type-C port on the back panel)

4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 ports on the back panel, 2 ports available through the internal USB connector)

6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

AUDIO

Realtek® ALC892 Codec

7.1-Channel High Definition Audio

LAN

1 x Intel® I219-V Gigabit LAN controller

INTERNAL CONNECTORS

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 6-pin ATX PCIe power connector

5 x SATA 6Gb/s connectors

1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)

2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1 x 4-pin CPU fan connector

1 x 4-pin water pump fan connector

5 x 4-pin system fan connectors

1 x Front panel audio connector

2 x Front panel connectors

1 x Series port connector

1 x Parallel port connector

1 x TPM module connector

1 x Thunderbolt Add-on Card Connector

1 x Chassis Intrusion connector

1 x Clear CMOS jumper

BACK PANEL PORTS

  1. PS/2 Combo Port
  2. DVI-D Port
  3. DisplayPort
  4. USB 3.1 Gen2 Type A
  5. LAN Port
  6. HD Audio Connectors
  7. USB 2.0 Port
  8. USB 3.1 Gen2 Type C
  9. USB 3.1 Gen1

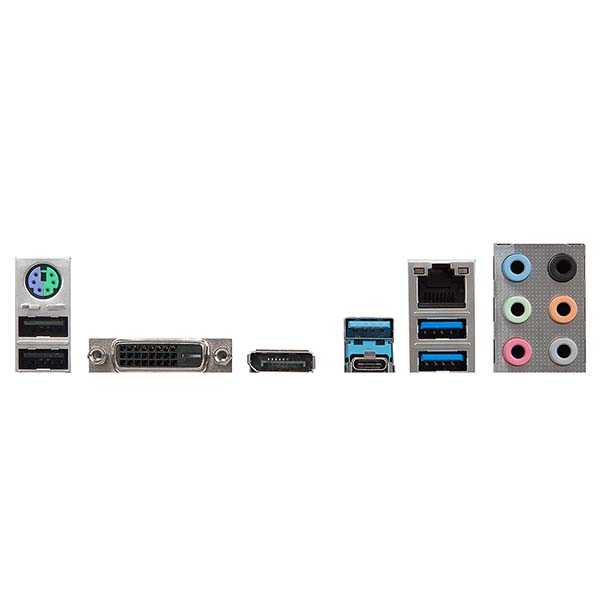

MSI B360-A PRO back panel ports

DIMENSIONS

12 in. x 9.6 in. (30.4 cm x 24.3 cm)

ATX Form Factor

MOUNTING

9 mounting holes
