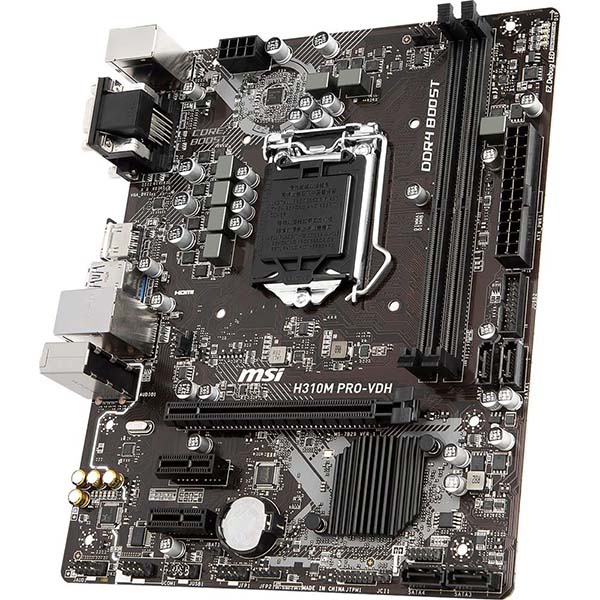

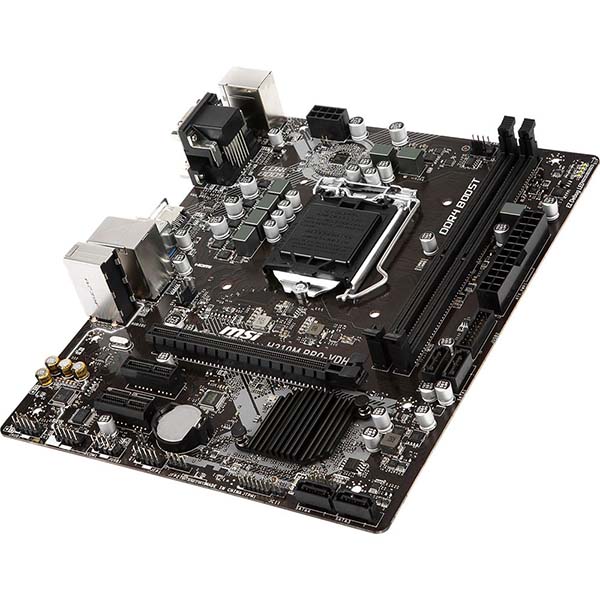

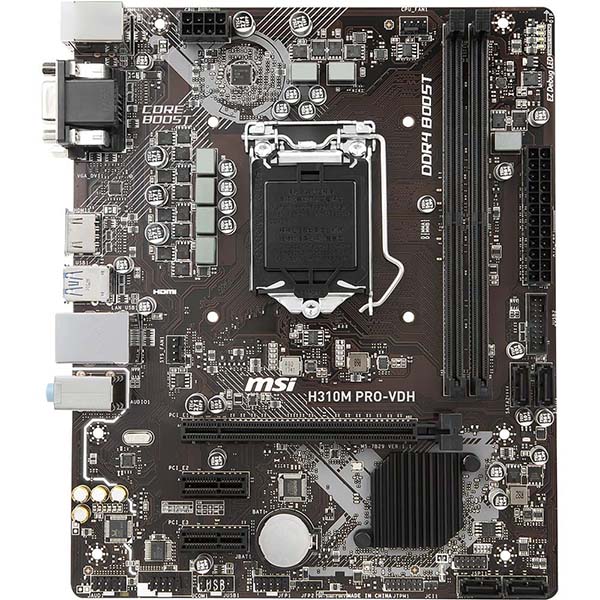

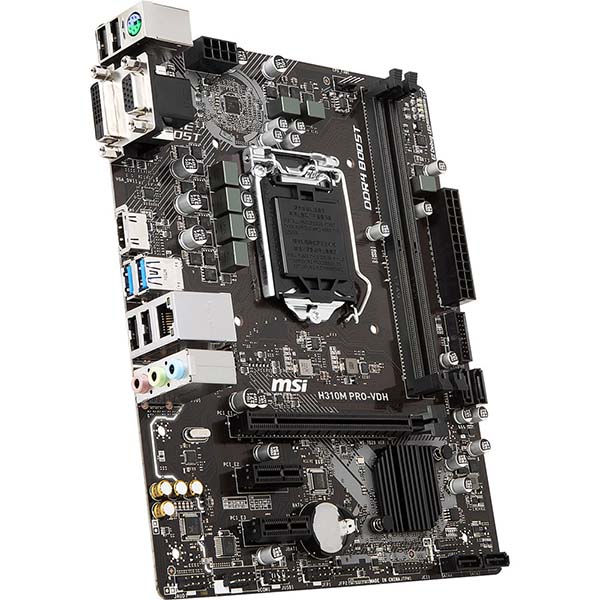

Mainboard H310M PRO – VDH
- Chipset: Intel® H310
- Socket LGA1151 v2
- Bộ nhớ: Tối đa 32GB
- Lưu trữ: SATA3 x4
- Cổng xuất hình: HDMI x1, DVI x1, VGA/D-Sub x1
- Cổng USB sẵn có: 2 USB 3.1, 4 USB 2.0
- Kích thước: M-ATX
Supports 8th Generation Intel® Core™ Processors, Pentium® Gold and Celeron® Processors for Socket LGA1151
Intel® H310 Chipset
2 x DDR4 memory slots, support up to 32GB
Supports DDR4 2666/ 2400/ 2133 MHz (by JEDEC)1
Supports DDR4 2666/ 2400/ 2133 (by XMP OC)1
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
2666 MHz for I7 and I5 processors only.
1 x PCIe 3.0 x16 slot
2 x PCIe 2.0 x1 slots
1 x VGA port, supports a maximum resolution of 2048×1536@50Hz, 2048×1280@60Hz, 1920×1200@60Hz
1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz
1 x HDMI™ port, supports a maximum resolution of 4096×2160@30H
Supports up to 2 displays simultaneously.
4 x SATA 6Gb/s ports
4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
6 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
7.1-Channel High Definition Audio
1 x RTL8111H Gigabit LAN controller
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
1 x Clear CMOS jumper
2 x Front panel connectors
1 x Serial port connector
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Front panel audio connector
1 x 4-pin CPU fan connector
1 x 4-pin system fan connector
8.9 in. x 7.3 in. (22.6 cm x 18.5 cm)
m-ATX Form Factor
6 mounting holes
