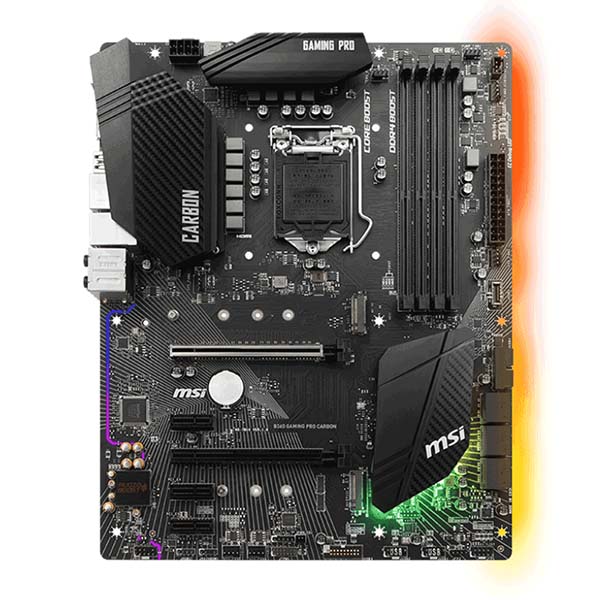

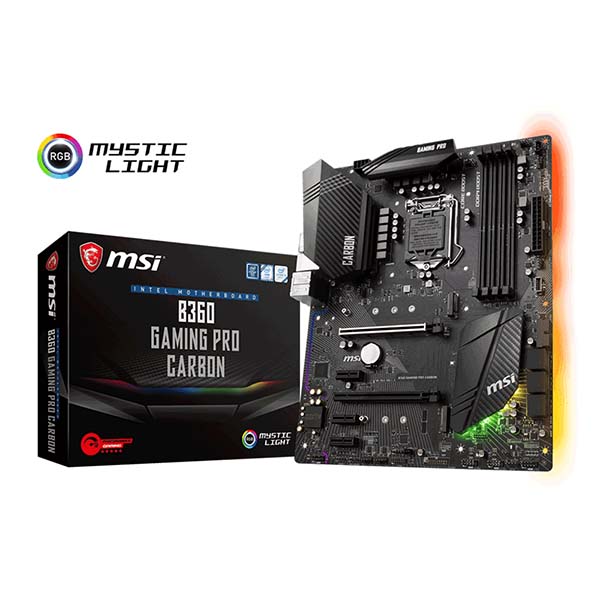

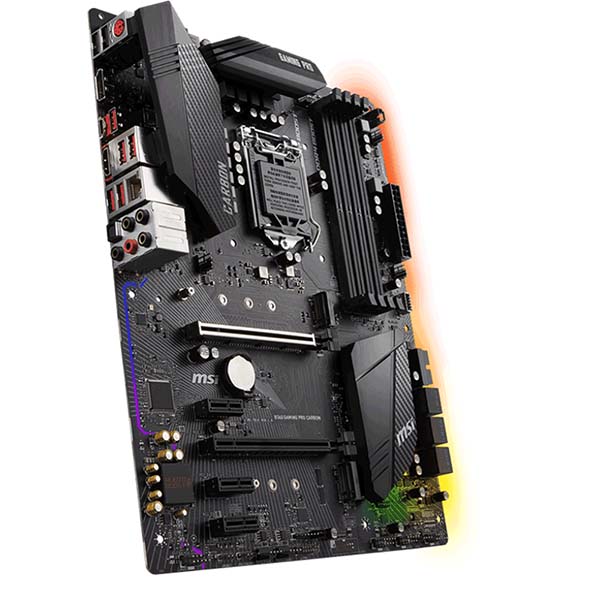

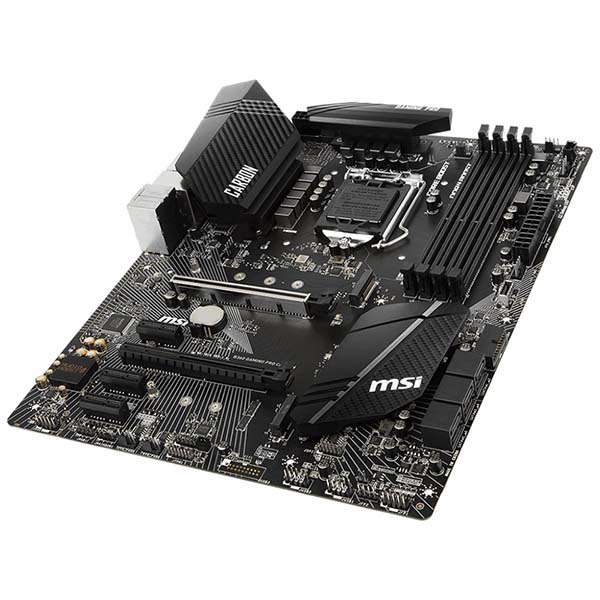

Mainboard B360 GAMING PRO CARBON
- Chipset: Intel® B360
- Socket LGA1151 v2
- Bộ nhớ: Tối đa 64GB
- Lưu trữ: M.2 x2, SATA3 x6
- Cổng USB: Tối đa 1 USB Type-C, 8 USB 3.1, 6 USB 2.0
- Âm thanh: 7.1
- Kích thước: ATX
Supports 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors for Socket LGA1151
Intel® B360 Chipset
4 x DDR4 memory slots, support up to 64GB
Dual channel memory architecture
Supports non-ECC UDIMM memorye
Supports Intel® Extreme Memory Profile (XMP)
Please refer to www.msi.com for more information on compatible memory
2 x PCIe 3.0 x16 slots (support x16/x4 modes)1
3 x PCIe 3.0 x1 slots
Please refer to www.msi.com for more information on compatible memory
1 x HDMI™ port 1.4, supports a maximum resolution of 4096×2160@30Hz
1 x DisplayPort port 1.2, supports a maximum resolution of 4096X2304@60Hz
Supports 2-Way AMD® CrossFire™ Technology
6 x SATA 6Gb/s ports*1
2 x M.2 slots (Key M)
SATA2 port will be unavailable when an M.2 SATA SSD module has been installed in the M2_1 slot.
Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
3 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports
(1 Type-A port and 1 Type-C port on the back panel, 1 Type-C port available through the internal USB connector)
2 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connector
6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
4 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel
7.1-Channel High Definition Audio
Supports S/PDIF output
1 x Intel® I219-V Gigabit LAN controller
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
1 x USB 3.1 Gen 2 Type-C connector
1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 4-pin water pump fan connector
5 x 4-pin system fan connectors
1 x Front panel audio connector
2 x Front panel connectors
1 x 5050 RGB LED strip 12V connector (JRGB1)
1 x WS2812B Individually Addressable RGB LED strip 5V connector (JRAINBOW1)
1 x CORSAIR connector (JCORSAIR1)
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Clear CMOS jumper
12 in. x 9.6 in. (30.4 cm x 24.3 cm)
ATX Form Factor
9 mounting holes
